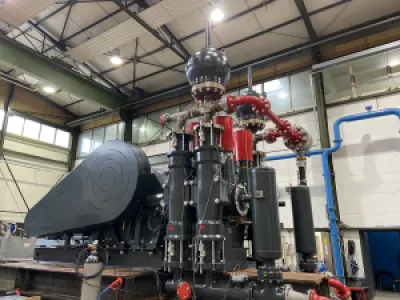

1. FELUWA MULTISAFE® Double Hose‑Diaphragm Pump

Overview
The FELUWA MULTISAFE® double hose-diaphragm pump represents the most advanced evolution of conventional piston diaphragm pumps. It combines maximum efficiency with outstanding safety – the ideal solution for demanding applications in mining and metallurgical processes.

Key Technical Features & Benefits

• Dual Hermetic Sealing: Two hose-diaphragms ensure 100% separation between the conveyed medium and hydraulic chamber – fully leak-proof and extremely reliable.

• Linear Flow Path: The medium flows directly through diaphragms and valves, with no contact with the pump head or hydraulic components – reducing wear and extending service life.

• Exceptionally High Efficiency: Hydraulic efficiency of up to 96% – setting new standards in its class.

• Modular Design System: Adaptable to a wide range of requirements in terms of pressure (up to 350 bar), flow rate (up to 1,000 m³/h), and wetted material compatibility – suitable even for abrasive, aggressive, or highly viscous fluids.

• Automated Monitoring & Safety: Quick-change check valves, hydromechanical control, leakage compensation, pressure relief, and pulsation dampening – all ensure long-term, safe, and continuous operation.

• Proven in Global Mining Operations: Successfully used in coal gasification, tailings transport, sludge pumping, and tank discharge applications worldwide – even under extreme conditions.

Recommended for MiningMetals Uzbekistan – focused on:

• Safe transport of abrasive or metal-laden media.

• Applications requiring exceptional reliability and low maintenance.

• Flexibility for highly specific process requirements.

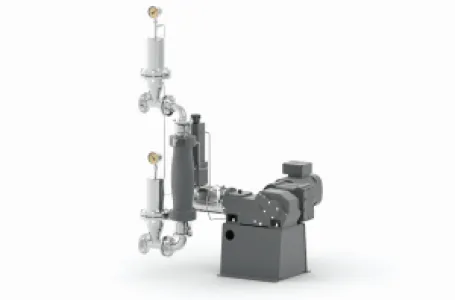

2. EcoTrans MULTISAFE® – Compact Solution for Low-Pressure Applications

Short Description
The EcoTrans MULTISAFE® extends the MULTISAFE® portfolio as a compact, fast, and cost-effective solution for low-pressure applications up to 16 bar – ideal for dosing, filter press feeding, or reactor supply.

Key Technical Features & Benefits

• Flow Control Without Frequency Converter: Integrated bypass capacity control enables simple and efficient flow regulation – economically and with minimal effort.

• Compact & Lightweight Design: Available in 3 sizes – space-saving and easily integrated into plant systems.

• Efficient & Energy-Saving: Up to 98% hydraulic efficiency, paired with long diaphragm service life (≥ 20,000 operating hours). Spare parts cost approx. 2% of CAPEX per year.

• Versatile & Safe for Various Media: Proven MULTISAFE® technology ensures compatibility with abrasive, aggressive, highly viscous, or toxic media; optional materials.

• Ready for Industry 4.0: Compatible with process control systems and equipped with predictive maintenance features – ideal for modern, connected operations.

• Typical Use Cases: Filter press feeding, reactor dosing, hygienic media transport, spray dryer supply – robust, precise, and low-maintenance.

Recommended for MiningMetals Uzbekistan – especially suitable for:

• Dosing and feeding tasks in mining or metallurgical processes that require low pressure.

• Rapidly deployable pump solutions with minimal space requirements.

• Integration into digital, Industry 4.0 environments.
